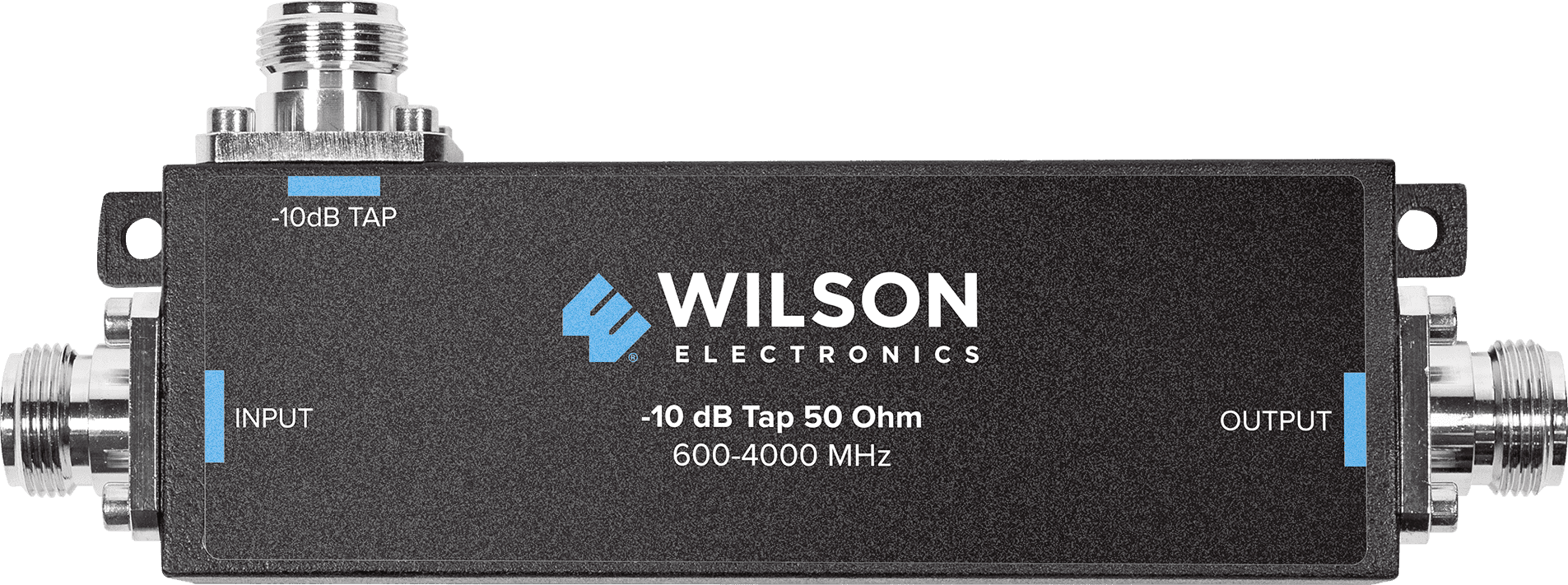

Wideband -10 dB Tap 600-4,000 MHz (50 Ohm)
Get the best possible cell signal with professional installation and optimization.
Wideband tap, 50 Ohm with N-Female connectors. Used with WilsonPro cellular repeaters to split a signal unequally, so that 2 antennas can have similar power with uneven cable runs. Allows the antenna which will be used closer to the repeater to receive the greater cable loss, reserving more signal power to be diverted to the antenna located farther from the repeater.
- Required in order to add C-Band antennas and repeaters to an existing system
- Compatible with frequencies from 600 to 4,000 MHz
- C-Band, T-Mobile band 71, and Pro 710i compatible
- -10 dB tap port and -0.5 dB passthru port
- Low insertion loss and low VSWR
Note: for users requiring current or future C-Band support, C-Band antennas, splitters, and taps must be used.
