Product Description

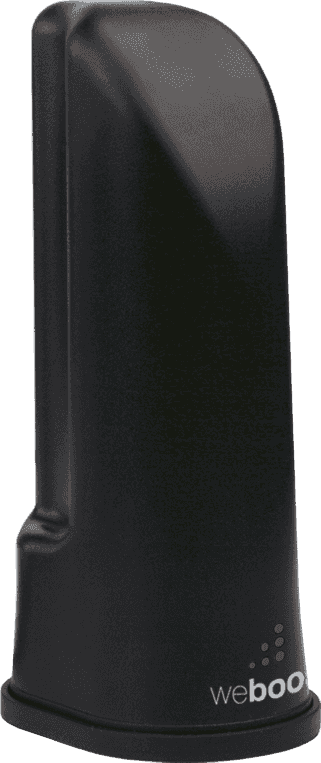

5.13 x 1.56 in. 4G Desktop cellular antenna, omni-directional antenna, 50 Ohm, magnet mount, 5 ft of RG174 with SMA Male connector.
Warning: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specs
| Model Number: | 301211F | |
| Frequency | 700-800 MHz | -0.8 dB |
| 824-894 MHz | 1.5 dB | |
| 880-960 MHz | 1.2 dB | |
| 1710-1880 MHz | 2.4 dB | |
| 1850-1990 MHz | 3.4 dB | |
| 2110-2170 MHz | 1.2 dB | |
| Impedance | 50 ohms | |
| Polarization | Vertical | |
| Connectors | SMA Male | |
| Mount Type | Minimum 6 inches away from metal | |
| Dimensions | Coax Cable: RG174 - 5 ft / 1.524 m, Height: 5.13 inches / 13 cm, Width: 1.56 in / 4 cm | |
| Price | $ 41.99 | |
Review Snapshot
works great
I bought four months ago and works great, would recommend to anybody
Bottom Line Yes, I would recommend to a friend
Was this review helpful to you? Yes: 7 No: 0
Submitted 2 years ago
By pineman
From Manitoba, Canada
Verified Reviewer
Verified Buyer
Q&A
Showing 10 out of 9 Questions
Asked by Tcro 2 years ago
Question: Hi, I want this for my basement because its the only place in the house I don't get service. Will this help me get service, and how does it connect? I have a ZTE axon 7.
Answer: Thank you for reaching out. This antenna is primarily used for the inside coverage area of our boosters. There are ways to attach antennas to the phone, but you would likely need to have an antenna outside, if you get no coverage in the basement. We take current signal and boost that as long as it's usable. We would like to work with you directly to see if we can find a solution for you. Please reach out to us here: http://support.weboost.com/hc/en-us/requests/new
Was this question helpful to you? Yes: 0 No: 0
Asked by Adam030 2 years ago
Question: I use my Galaxy S7 at work where there is no wifi to connect to. In the area i work in my data signal is fairly low so it makes it difficult to web browse or stream videos. So im looking for something that would boost my cell phones signal. ThisDoThat?
Answer: Thank you for your question. Our booster will help internet connection, as long as its coming from a cellular tower. We would like to work with you directly to ensure there is enough signal to boost, and that we choose the best booster for your situation. You can reach us here: http://support.weboost.com/hc/en-us/requests/new Or by phone at 866-294-1660.
Was this question helpful to you? Yes: 0 No: 0
Asked by Bert2 2 years ago
Question: I have a 470101 Home 4G and was wondering if I could add a second desktop antenna?
Answer: Thank you for reaching out to us! The 470101 booster is not designed for splitting, therefore we would not recommend adding another desktop antenna. You could use the upgrade 304447- which can typically cover up to double the current coverage. https://store.weboost.com/products/ag-dt-panel-antenna-upgrade-70
Was this question helpful to you? Yes: 0 No: 0
Asked by Beth 3 years ago
Question: I have a 470101 and wondering if there is an extender cable for this antenna or is 5 ft the longest you have?
Answer: Thank you for your question! Some of our re-sellers may have extension cables for the antenna, but it is not recommended. The cable extension would provide more loss than we'd want to incur. However, we do have an optional upgrade panel antenna that comes with a 20 ft piece of cable, which could help provide more coverage area, and more length to place the antenna optimally. You can find this antenna under the part number- 304447 through many of our online re-sellers. For additional questions, you can reach us here: http://support.weboost.com/hc/en-us/requests/new
Was this question helpful to you? Yes: 0 No: 0
Asked by DennisRaff 3 years ago
Question: I have a weBoost Connect 4G Cell Phone Booster Kit. I use it in my RV and sometimes I get feedback (flashing green/orange) from the inside antenna. Would the desktop antenna help solve this issue?
Answer: Thank you for your question. The orange and green lights indicate that you are getting too strong of a signal from the cell phone tower and that you may need to move your external antenna. If you are getting the coverage that you need inside you may not have to do anything to the antenna. If you have any other questions feel free to reach out to us here: http://support.weboost.com/hc/en-us/requests/new
Was this question helpful to you? Yes: 0 No: 0
Asked by kalooma 3 years ago
Question: Can I use this desktop antenna with the drive 4g-x, instead of the small inside antenna that comes with the 4g-x? I need to provide a signal throughout our 37 foot RV.
Answer: Thank you for your question. We do not recommend using the desktop antenna with the Drive 4G-X, it may give you an extra foot or so of coverage. If you are looking to cover the full RV you may want to check out our RV4G here: https://store.weboost.com/products/rv-4g. If you have any other questions feel free to reach out to us here: http://support.weboost.com/hc/en-us/requests/new
Was this question helpful to you? Yes: 0 No: 1
Asked by Rosemary 3 years ago
Question: Hello we just bought this unit for our cottage which is about 3 hour drive from Thunder Bay Ont. It will send texts great. for Phone calls we have to actually hold the antenna and phone to make a call. Should we have a stronger inside antenna.
Answer: We do have an optional indoor antenna upgrade for the Home 3G (formerly DT), and Home 4G (formerly DT 4G). To replace the desktop antenna, we recommend the - 304447. There are some situations where you may need a stronger system, rather than upgrade internal antenna. We recommend submitting a help ticket, so we can obtain signal strength readings from your location to determine what system, or internal antenna would best fit your needs. You can submit a ticket for further assistance here: https://www.weboost.com/us/support-center/
Was this question helpful to you? Yes: 0 No: 0
Asked by neko31 3 years ago
Question: Can I use this by itself? I only need an indoor antenna for my apartment for my Nokia Lumia 635 cellphone.
Answer: This antenna is one part of a three part system. Your phone has several ports on the back, but none of them are designed for an external antenna. Therefore, you would need a booster system, with an outdoor antenna, booster, indoor antenna, and cable. I recommend contacting us to determine what booster is the best option based on your personal situation. We can be reached at 866-294-1660 or [email protected]
Was this question helpful to you? Yes: 0 No: 0
Asked by Kerry 3 years ago
Question: Can you send me detailed specs on this antenna including the gain vs. frequency plot and antenna pattern plot as well. Interested in 700 MHz - 1.9 GHz (continuous).
Answer: The following is the information on the frequency gains: 700-800 .8 DB 824-894 1.5 DB 880-960 1.2 DB 1710-1850 2.4 DB 1850-1990 3.4 DB 2110-2170 1.2 DB Unfortunately I do not have a picture of the plot pattern. Please contact us by phone, email, or chat for more in depth information and to discuss the pattern plot. We can be reached at [email protected] or 866-294-1660.
Was this question helpful to you? Yes: 0 No: 0
Answer: We are happy to send you what you are looking for. Please contact us by phone, email, or chat with your contact information. We can be reached at [email protected] or 866-294-1660.
Was this question helpful to you? Yes: 0 No: 0
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
In Canada, BEFORE USE you must meet all requirements set out in ISED CPC-2-1-06.
You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by ISED or a licensed wireless service provider.
warningE911 location information may not be provided or may be inaccurate for calls served by using this device.
